XN-27

Die XN-27 vom britischen Hersteller Hivac ist eine Sonderzeichen-Nixie mit 15mm Ziffernhöhe:

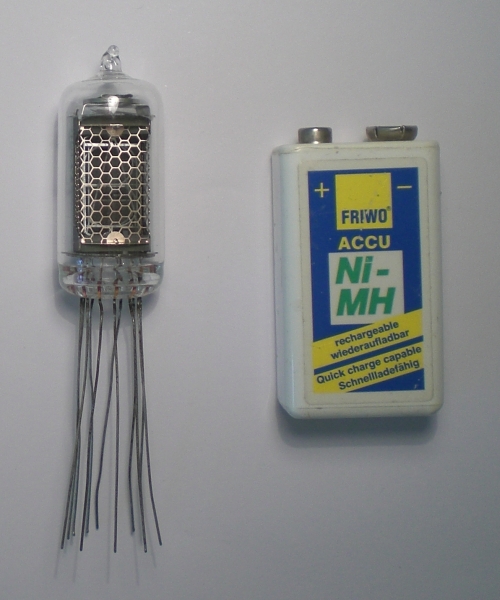

Die XN-27 im Größenvergleich

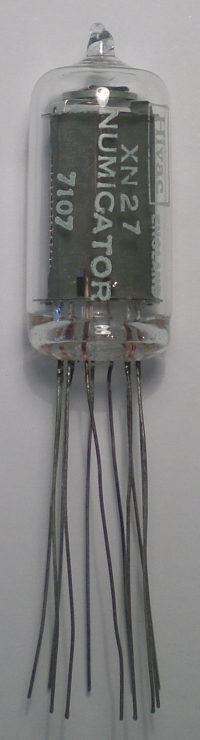

So sieht die XN-27 im Ruhezustand aus:

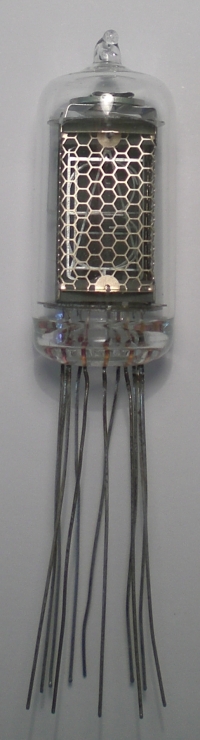

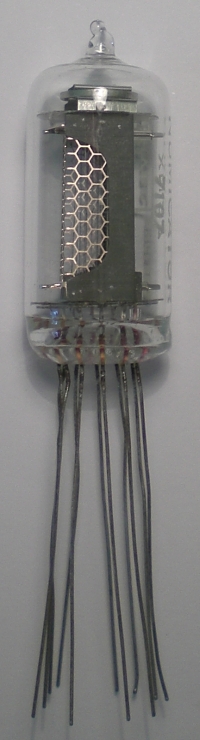

Die XN-27 im RuhezustandDie XN-27 im RuhezustandDie XN-27 im Ruhezustand

Das ist das Leuchtbild der XN-27:

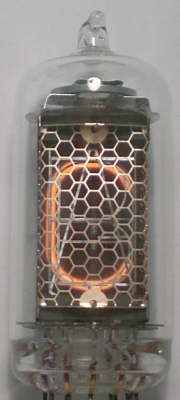

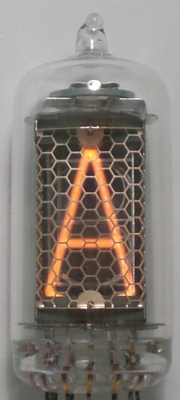

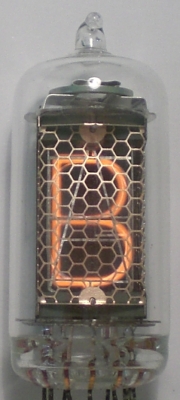

Das Symbol 'A'Das Symbol 'B'Das Symbol 'C'

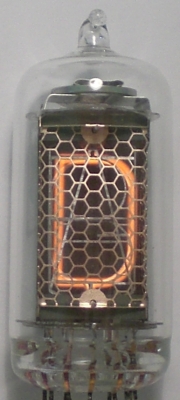

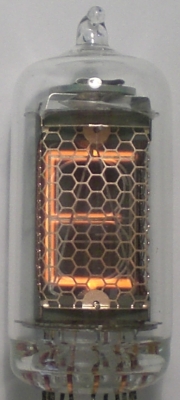

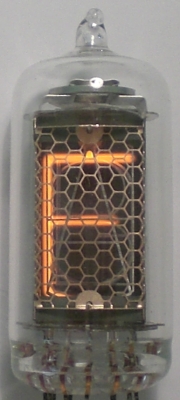

Das Symbol 'D'Das Symbol 'E'Das Symbol 'F'

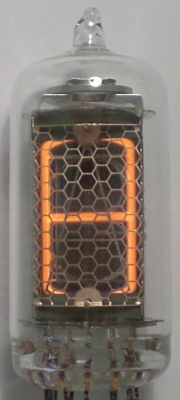

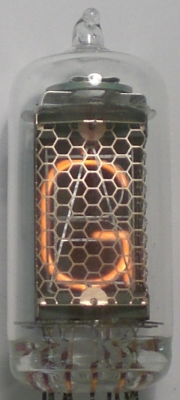

Das Symbol 'G'Das Symbol 'H'

Hier ist das Leuchtbild der XN-27 von der Seite aus zu sehen:

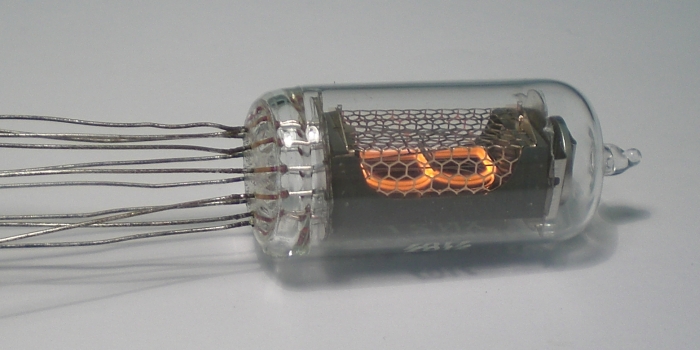

Das Leuchtbild der XN-27 von der Seite

Leider besitze ich kein Datenblatt zur XN-27. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Nixie Tube Collection » XN-27

XN-27

The XN-27 from the British manufacturer Hivac is a special symbol Nixie tube with a digit height of 15mm:

The XN-27 in size comparison

This is how the XN-27 looks like in state of rest:

The XN-27 in state of restThe XN-27 in state of restThe XN-27 in state of rest

This is the display of the XN-27:

The symbol 'A'The symbol 'B'The symbol 'C'

The symbol 'D'The symbol 'E'The symbol 'F'

The symbol 'G'The symbol 'H'

Here you can see the display of the XN-27 from the side:

The glowing XN-27 from the side

Unfortunately, I do not have any datasheet for the XN-27. If someone can provide me with a datasheet, please email me.
