LL-558

Die LL-558 vom polnischen Hersteller Unitra Dolam ist eine Sonderzeichenröhre mit einer Ziffernhöhe von 14mm, die für die 15.5mm-Serie konzipiert wurde:

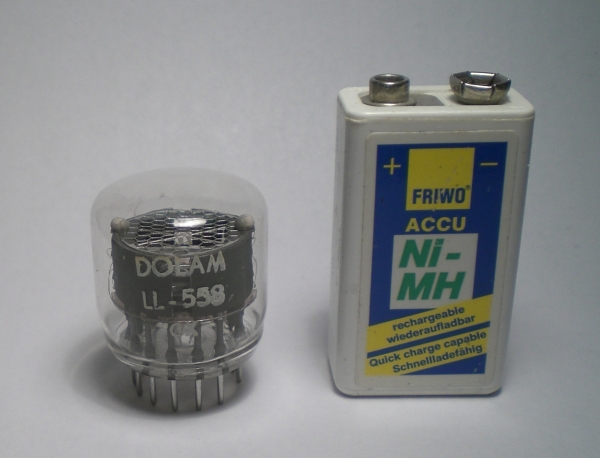

Die LL-558 im Größenvergleich

Hier ist die LL-558 im Ruhezustand zu sehen:

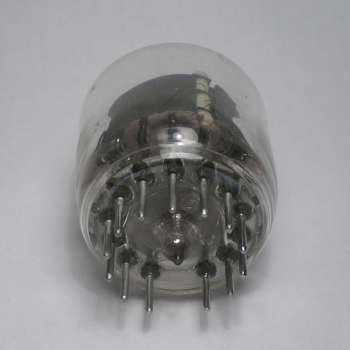

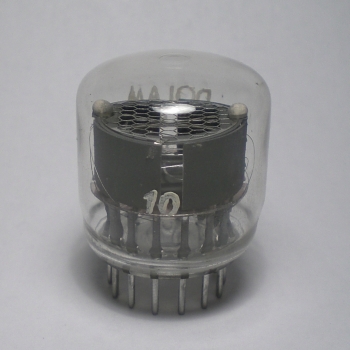

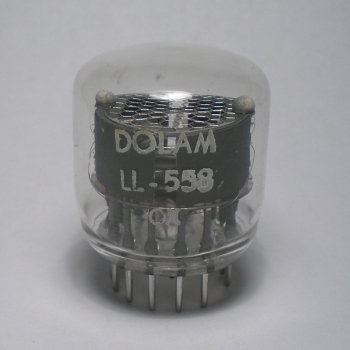

Die LL-558 im RuhezustandDie LL-558 im Ruhezustand

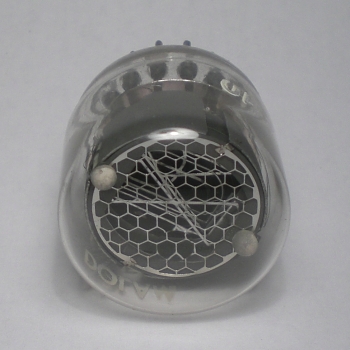

Die LL-558 im RuhezustandDie LL-558 im Ruhezustand

Die LL-558 zeigt folgende Symbole an:

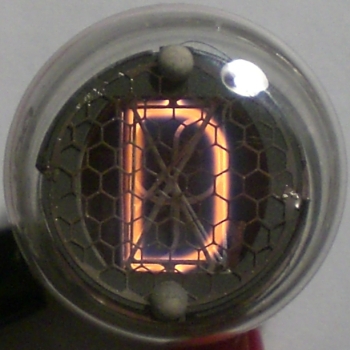

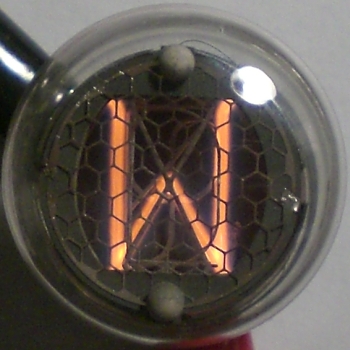

Das Symbol 'D'Das Symbol 'W'

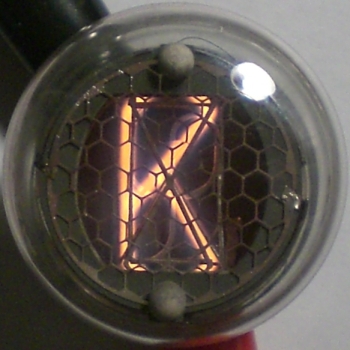

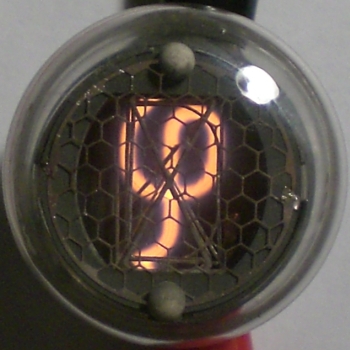

Das Symbol 'K'Das Symbol 'φ'

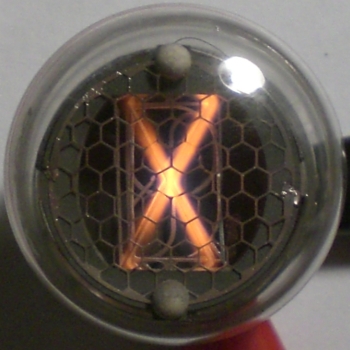

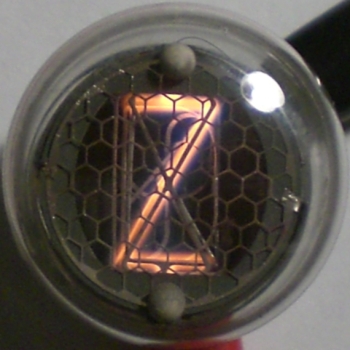

Das Symbol 'Z'Das Symbol 'X'

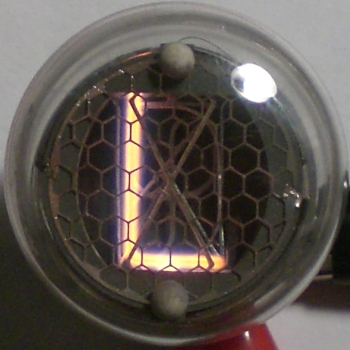

Das Symbol 'L'

Ähnliche polnische Nixies sind die LL-555, LL-556, LL-557; diese Röhren wurden oft zusammen in Anzeigesystemen verwendet.

So sieht das Leuchtbild der LL-558 von der Seite aus:

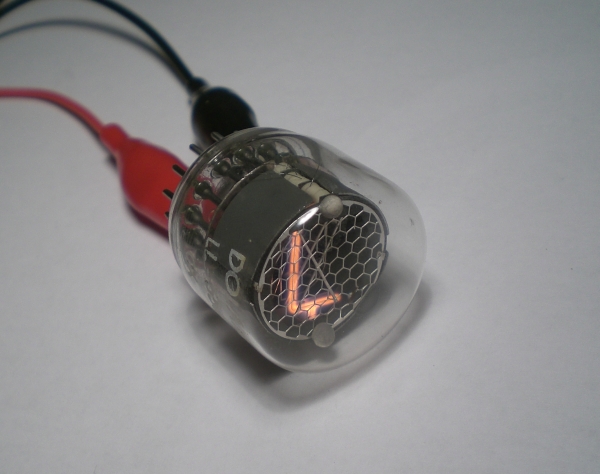

Das Leuchtbild der LL-558 von der Seite

Leider besitze ich kein Datenblatt zur LL-558. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Nixie Tube Collection » LL-558

LL-558

The LL-558 from the Polish manufacturer Unitra Dolam is a special symbol Nixie tube with a digit height of 14mm, being designed for the 15.5mm-series:

The LL-558 in size comparison

Here you can see the LL-558 in state of rest:

The LL-558 in state of restThe LL-558 in state of rest

The LL-558 in state of restThe LL-558 in state of rest

The LL-558 can display the following symbols:

The symbol 'D'The symbol 'W'

The symbol 'K'The symbol 'φ'

The symbol 'Z'The symbol 'X'

The symbol 'L'

Similar Polish Nixie tubes are LL-555, LL-556, LL-557 - these tubes have often been used together in display panels.

Here is how the LL-558 display looks like from the side:

The glowing LL-558 from the side

Unfortunately, I do not have any datasheet for the LL-558. If someone can provide me with a datasheet, please email me.
