LL-557

Die LL-557 vom polnischen Hersteller Unitra Dolam ist eine Sonderzeichenröhre mit einer Ziffernhöhe von 14mm, die für die 15.5mm-Serie konzipiert wurde:

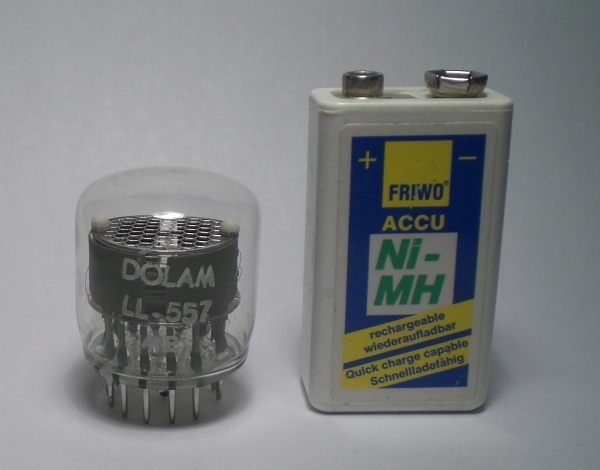

Die LL-557 im Größenvergleich

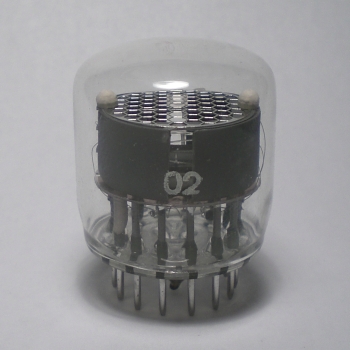

Hier ist die LL-557 im Ruhezustand zu sehen:

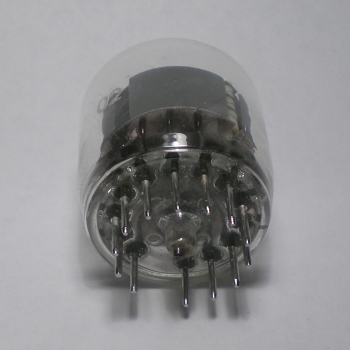

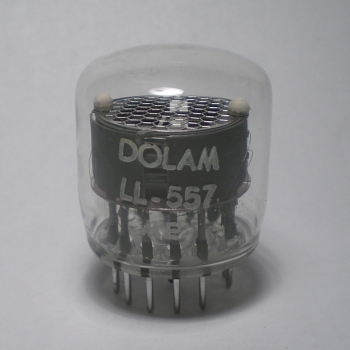

Die LL-557 im RuhezustandDie LL-557 im Ruhezustand

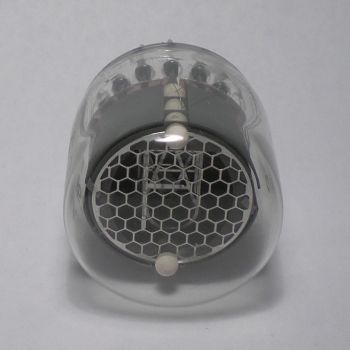

Die LL-557 im RuhezustandDie LL-557 im Ruhezustand

Die LL-557 zeigt folgende Symbole an:

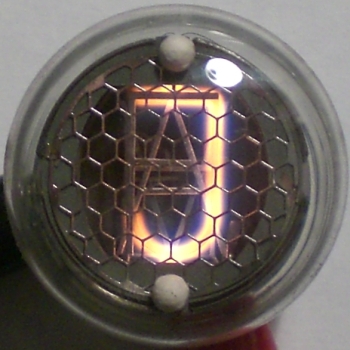

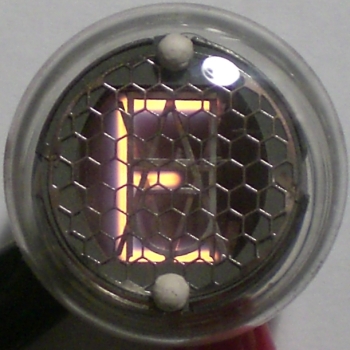

Das Symbol 'E'Das Symbol 'J'

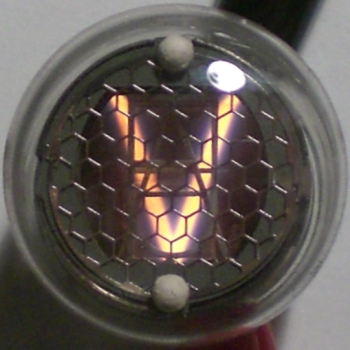

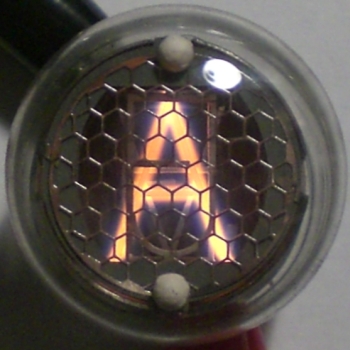

Das Symbol 'A'Das Symbol 'V'

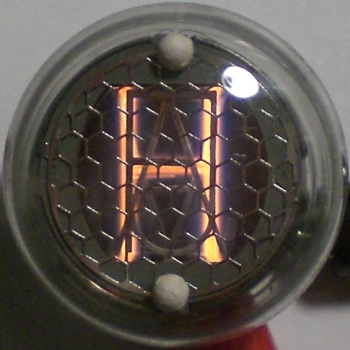

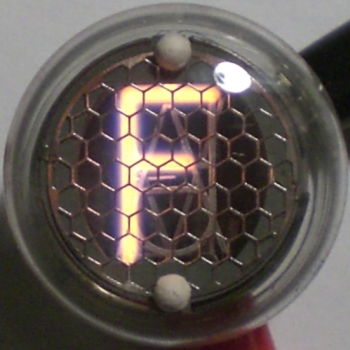

Das Symbol 'F'Das Symbol 'H'

Ähnliche polnische Nixies sind die LL-555, LL-556, LL-558; diese Röhren wurden oft zusammen in Anzeigesystemen verwendet.

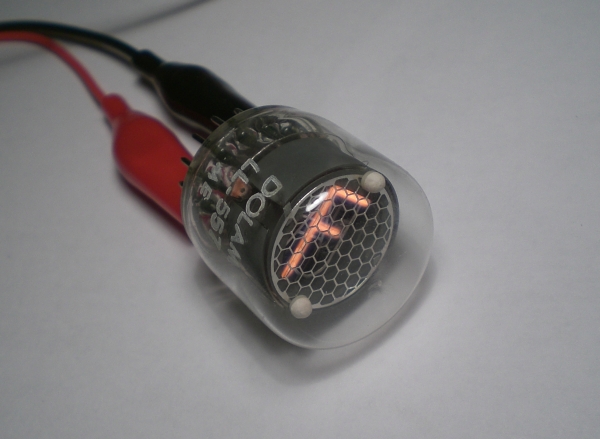

So sieht das Leuchtbild der LL-557 von der Seite aus:

Das Leuchtbild der LL-557 von der Seite

Leider besitze ich kein Datenblatt zur LL-557. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.
