Die GR4G stammt vom englischen Hersteller ETL und ist die Sonderzeichenröhre zur GR10G, die Ähnlichkeit des Anodengitters ist unverkennbar:

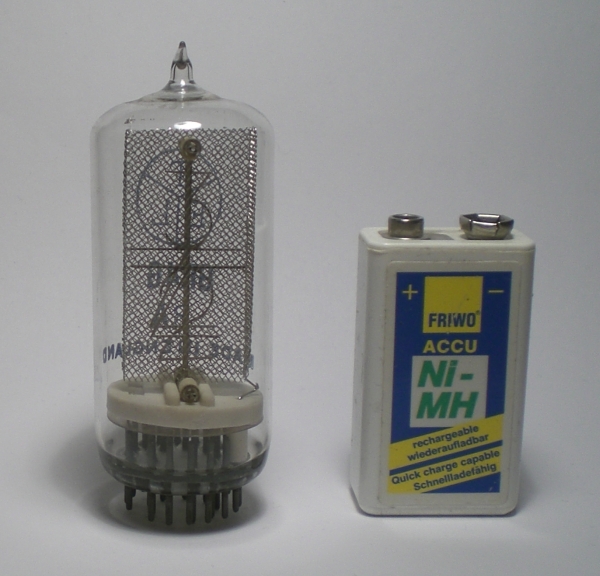

Die GR4G im Größenvergleich

Hier ist die GR4G im Ruhezustand zu sehen:

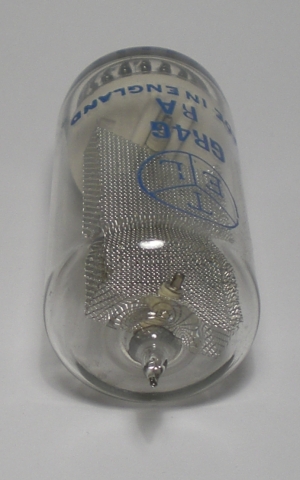

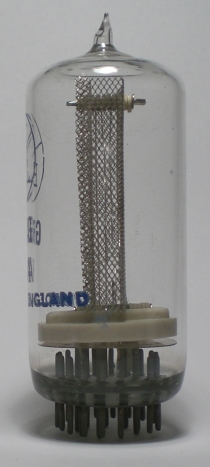

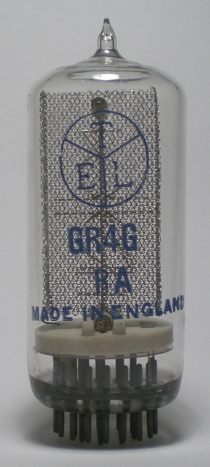

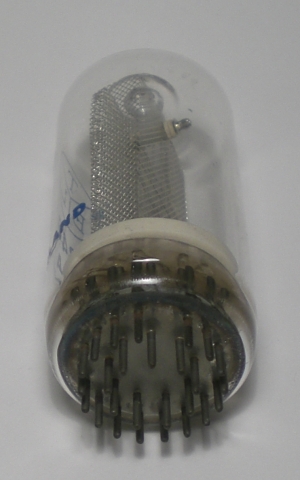

Die GR4G im RuhezustandDie GR4G im RuhezustandDie GR4G im Ruhezustand

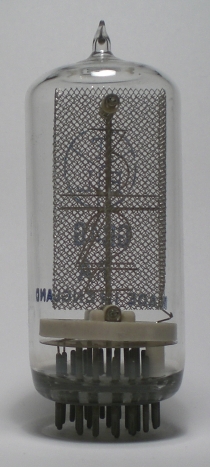

Die GR4G im RuhezustandDie GR4G im Ruhezustand

Hier ist das Leuchtbild zu sehen:

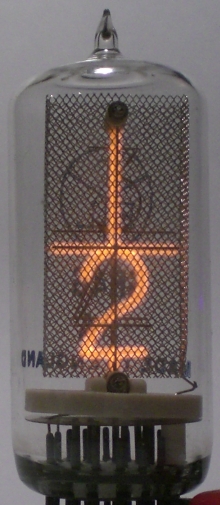

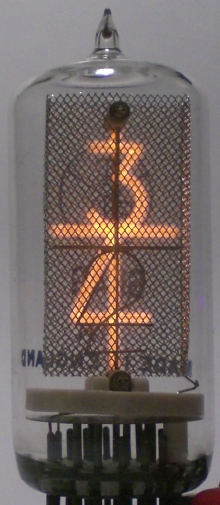

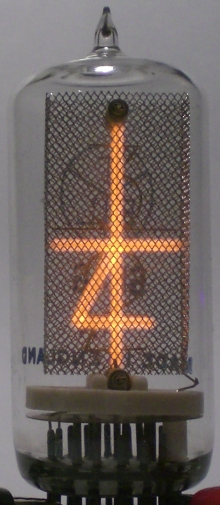

Das Symbol '½'Das Symbol '¾'Das Symbol '¼'

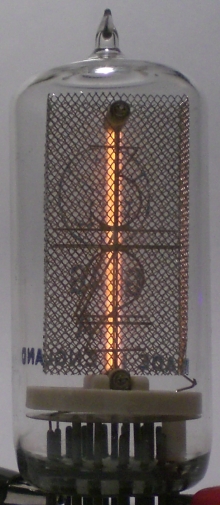

Das Symbol '1'

Hier ist das faszinierende Leuchtbild von der Seite aus zu sehen:

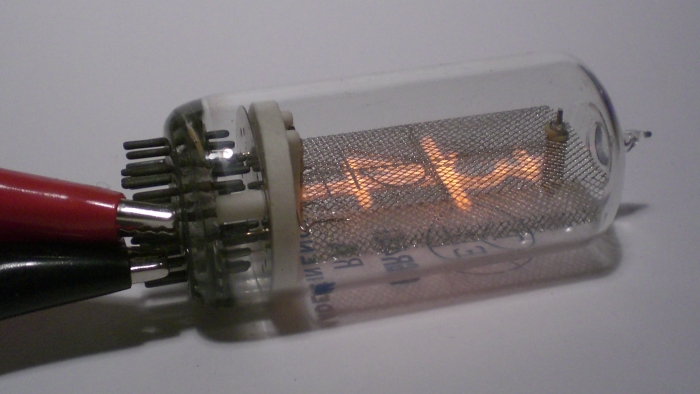

Das Symbol '¾' von der Seite

Die GR4G hat das für die G-Typen typische durchscheinende Anodengitter:

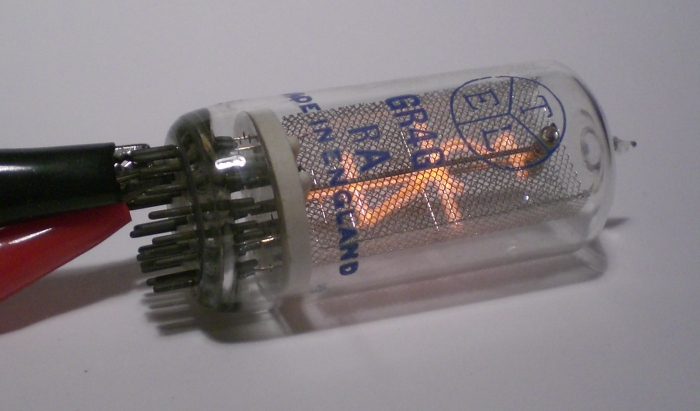

Das Symbol '¾' von der Rückseite

Hier ein paar Daten zur GR4G:

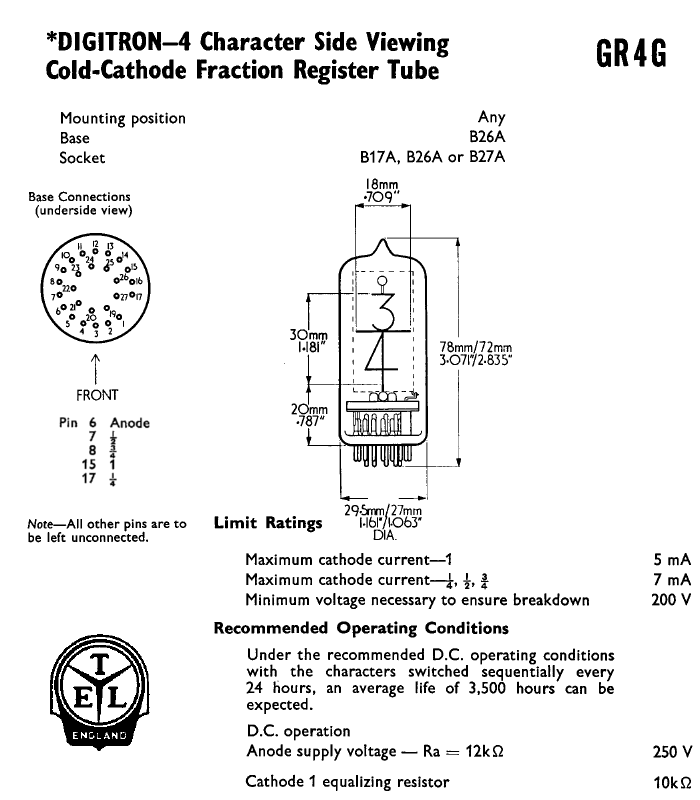

Daten zur GR4G

Das komplette Datenblatt gibt es hier zum Download: GR4G.pdf (100 KB).

Achtung! Neben der GR4G gibt es auch noch andere Sonderzeichen-Nixies wie z.B. die GR4J, GR12G und GR12J. Besitzen Sie diese, oder kennen Sie eine Quelle für diese fantastischen Röhren? Schreiben Sie mir doch eine Email, ich würde mich freuen! Achtung!
