GR-414

Die GR-414 (Äquivalent zu CD47 und GR-411) vom japanischen Hersteller Rodan ist mit ihren 135mm Ziffernhöhe die größte Nixie der Welt - die Einzelpreise liegen über 450€ und höher (Stand: März '08), und auch wenn man diesen Betrag bezahlen kann, dann wird man nur sehr selten Angebote finden. Ich habe mehr als zwei Jahre gebraucht, um diese GR-414 meiner Sammlung hinzufügen zu können.

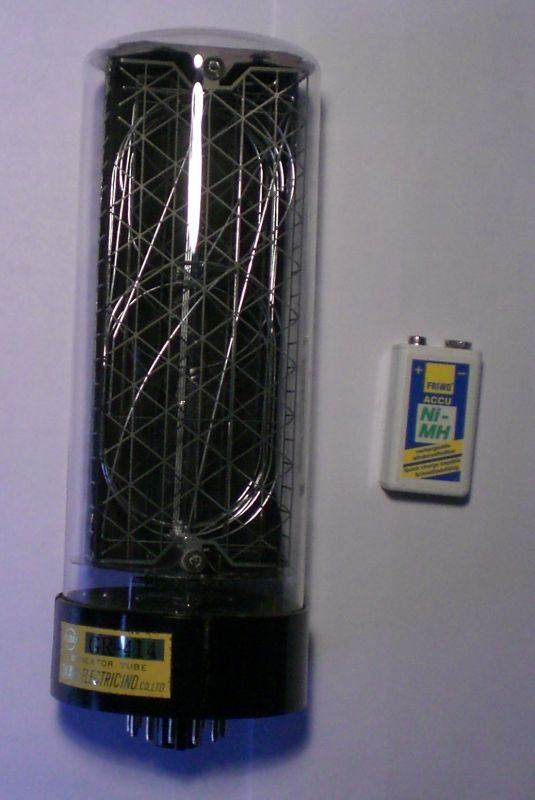

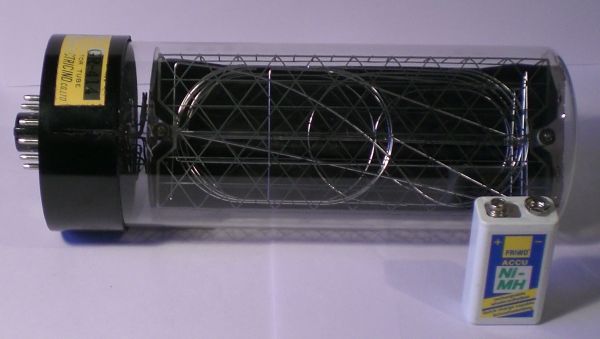

Die GR-414 im Größenvergleich

Die GR-414 im Größenvergleich

Die GR-414 ist über 200mm hoch, aber sie ist erstaunlich leicht (besteht praktisch nur aus dünnem Glas, Neon und Blech); die Erscheinung ist aber trotzdem beeindruckend:

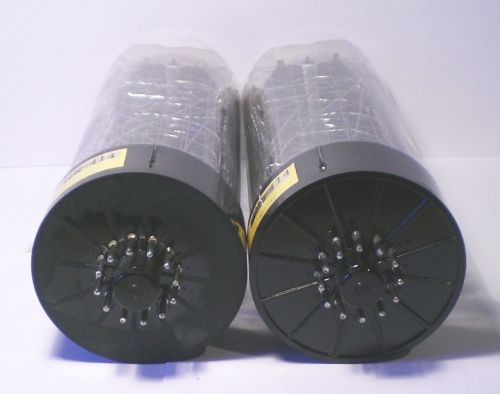

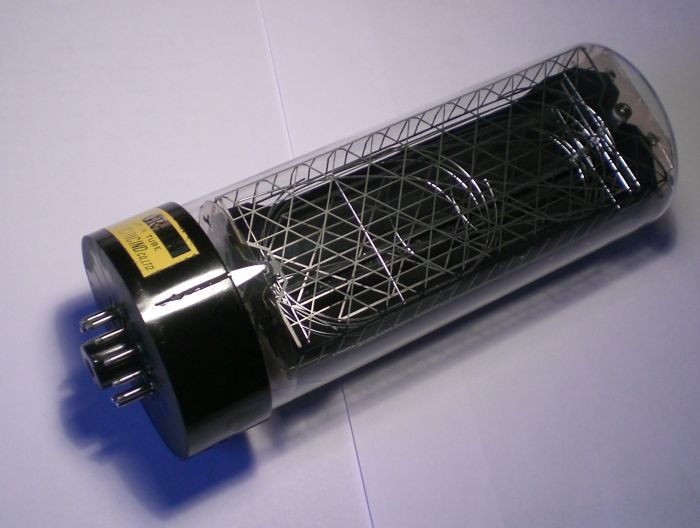

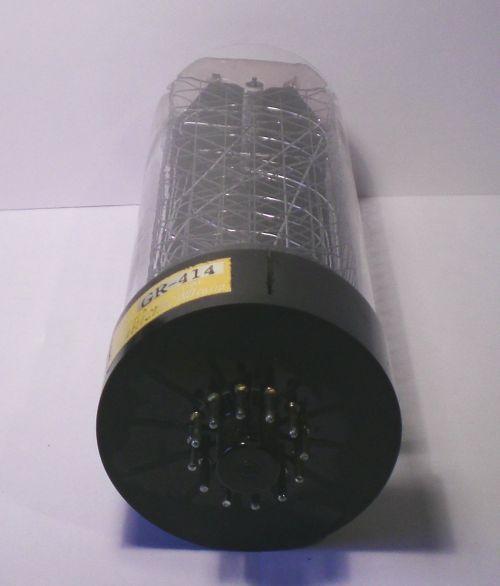

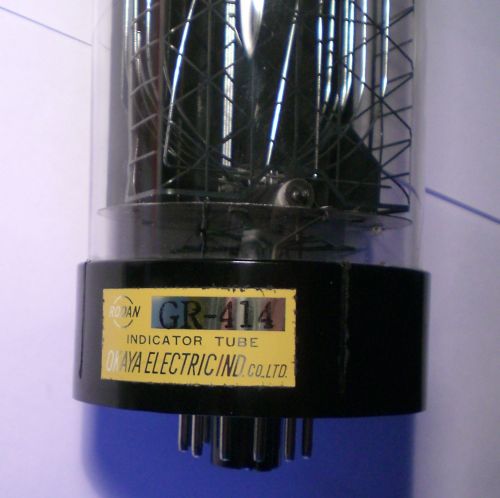

Die GR-414 im Ruhezustand

Die GR-414 im Ruhezustand

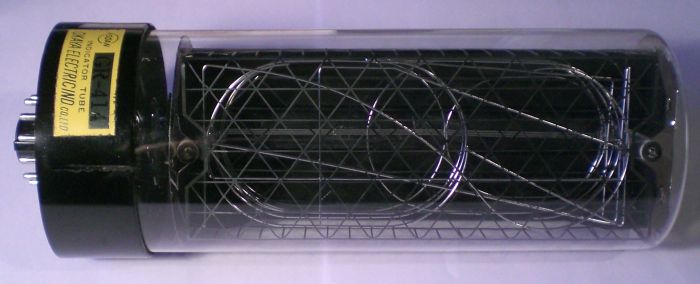

Die GR-414 im Ruhezustand

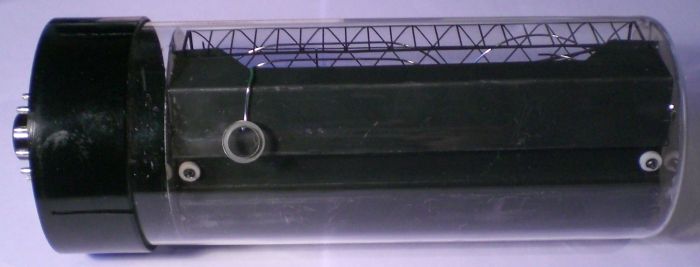

Die GR-414 im Ruhezustand

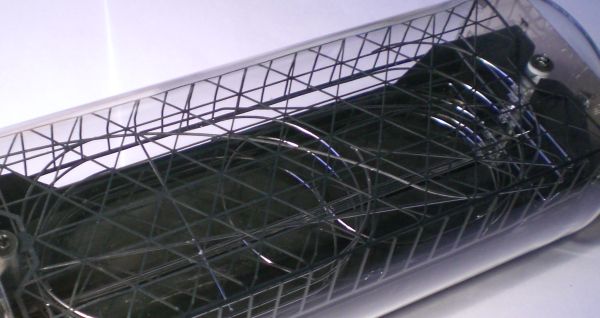

Die GR-414 im Ruhezustand

Der Sockel ist ein bisschen abgeschabt:

Die GR-414 im Ruhezustand

Im neueren Zustand sieht der anders aus:

Die GR-414 im Ruhezustand

Und hier ist endlich das Leuchtbild der GR-414 zu sehen:

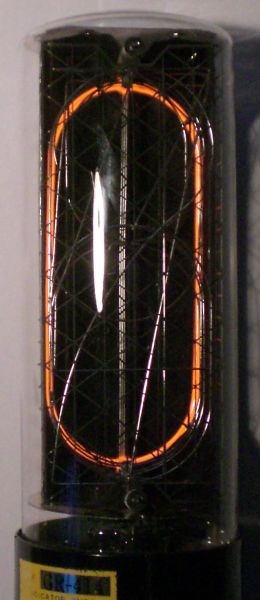

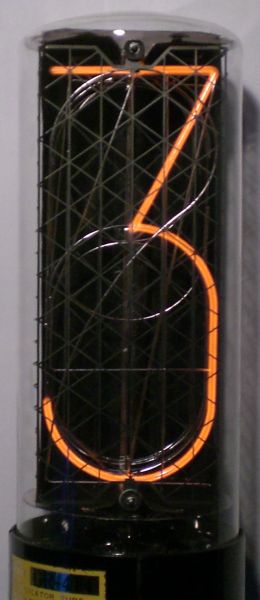

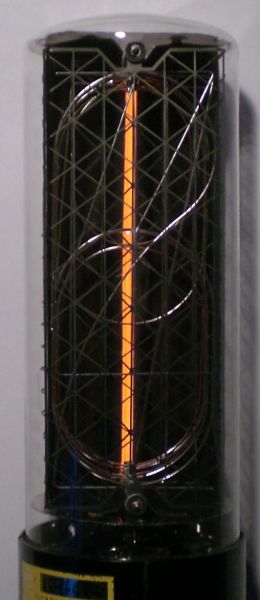

Die Ziffer 0Die Ziffer 1

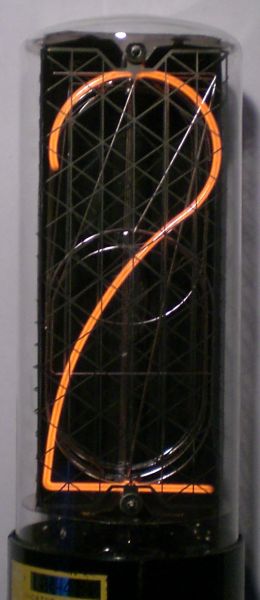

Die Ziffer 2Die Ziffer 3

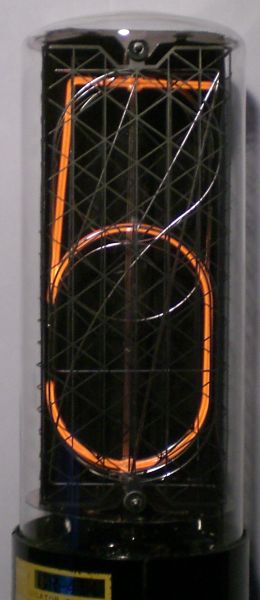

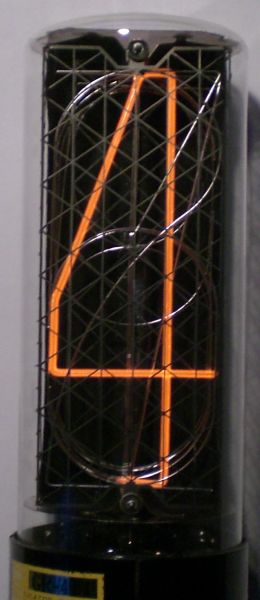

Die Ziffer 4Die Ziffer 5

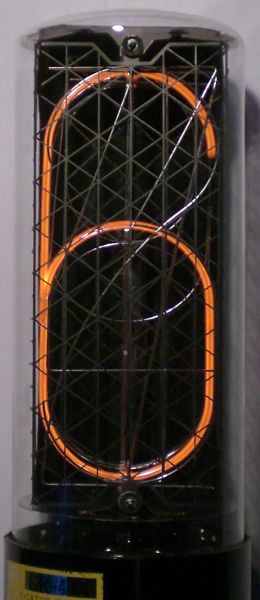

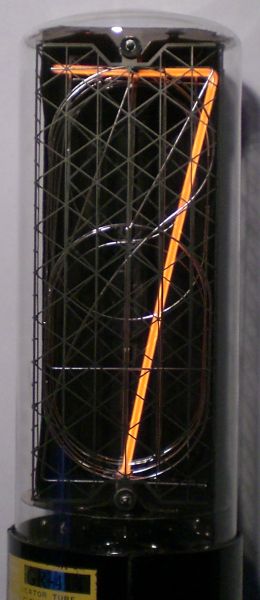

Die Ziffer 6Die Ziffer 7

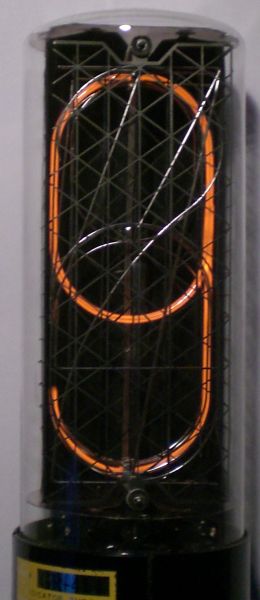

Die Ziffer 8Die Ziffer 9

Die GR-414 ist etwas fragil aufgebaut; aus dem Glaskolben treten einfach über einen Schmelzstutzen die Drähte aus, die dann mit dem Blech-Sockel verbunden werden, in den der Glaskolben eingeklebt ist; eine Erschütterung könnte also schon dazu führen, dass dieser Übergang zwischen Glaskolben und Drähten aufplatzt:

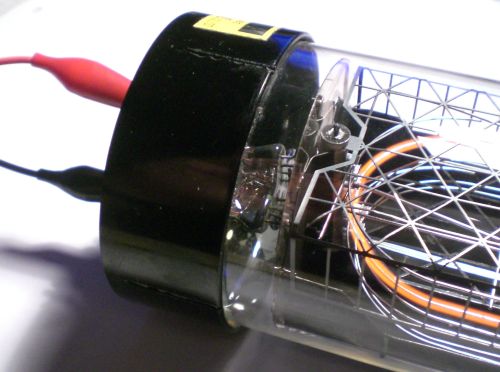

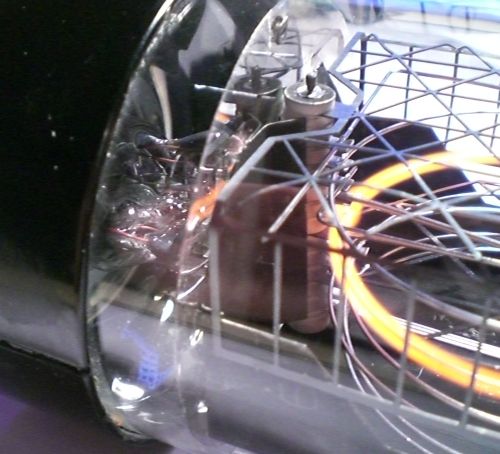

Die Verbindung Kabel-Sockel

Die Verbindung Kabel-Sockel

Aber mit solch einer Röhre sollte sowieso vorsichtig umgegangen werden. Hier noch ein abschließendes Bild des Leuchtbildes - das Anodengitter wie auch die Ziffern sind einfach eine fantastische geometrische Konstruktion:

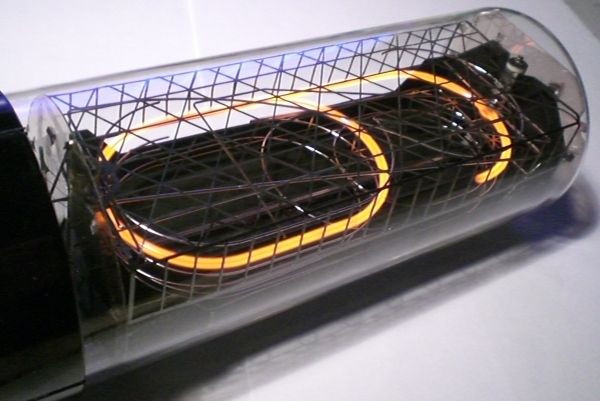

Die Ziffer 6 von der Seite

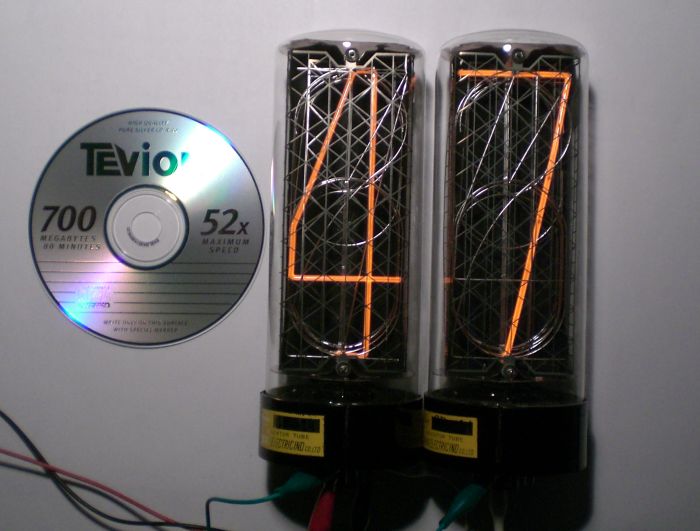

Und zum Schluss ein kleines Bilderrätsel: Welcher Name ist hier versteckt?

Ein kleines Rätsel

Leider besitze ich kein Datenblatt zur GR-414. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.

Achtung! Ich bin natürlich an weiteren GR-414 / GR-411 / CD47 interessiert, aber auch an der zugehörigen Riesen-Sonderzeichen-Röhre GR-1620 (kg, t). Schreiben Sie mir doch eine Email, wenn Sie mir helfen können, ich würde mich freuen! Achtung!
