GR2G

Die GR2G stammt vom englischen Hersteller ETL und ist die Sonderzeichenröhre zur GR10G, die Ähnlichkeit des Anodengitters ist unverkennbar:

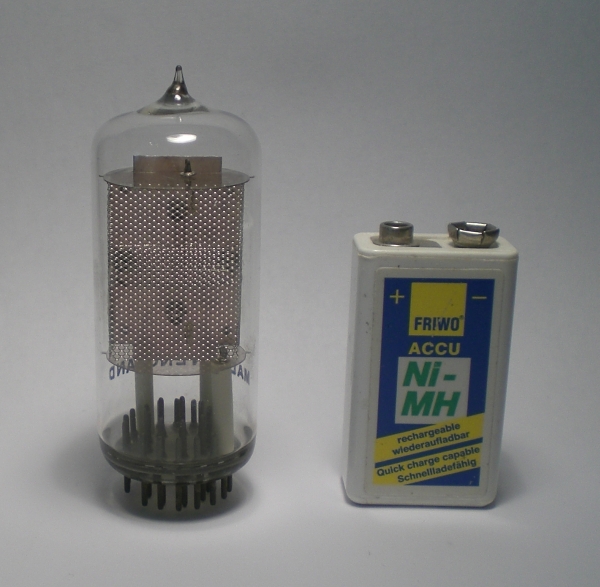

Die GR2G im Größenvergleich

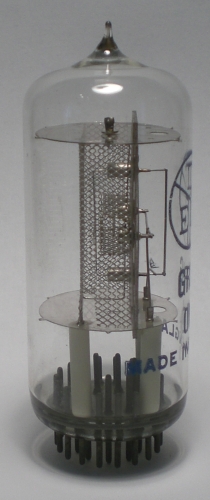

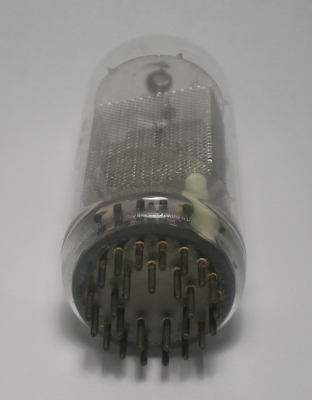

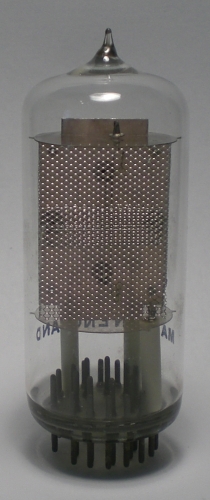

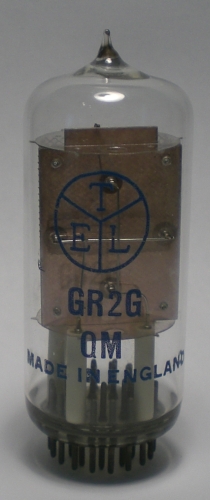

Hier ist die GR2G im Ruhezustand zu sehen:

Die GR2G im RuhezustandDie GR2G im RuhezustandDie GR2G im Ruhezustand

Die GR2G im RuhezustandDie GR2G im Ruhezustand

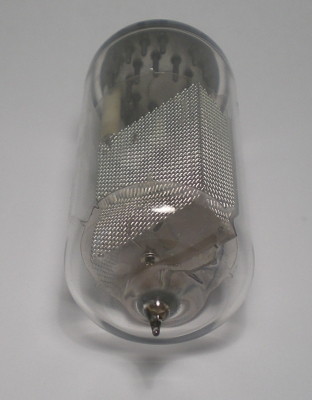

Die GR2G hat eine sehr interessante interne Konstruktion; unter dem oberen Anodengitter befindet sich ein weiteres, welches das Minuszeichen bedeckt:

Die GR2G im RuhezustandDie GR2G im Ruhezustand

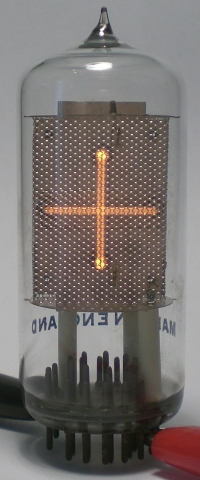

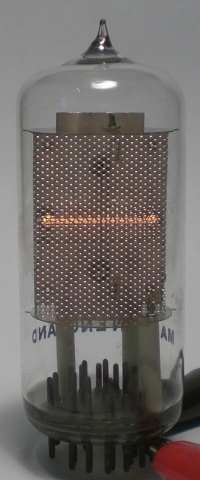

Hier ist das Leuchtbild zu sehen:

Das Symbol '+'Das Symbol '-'

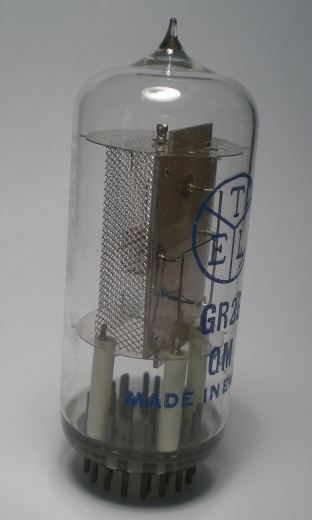

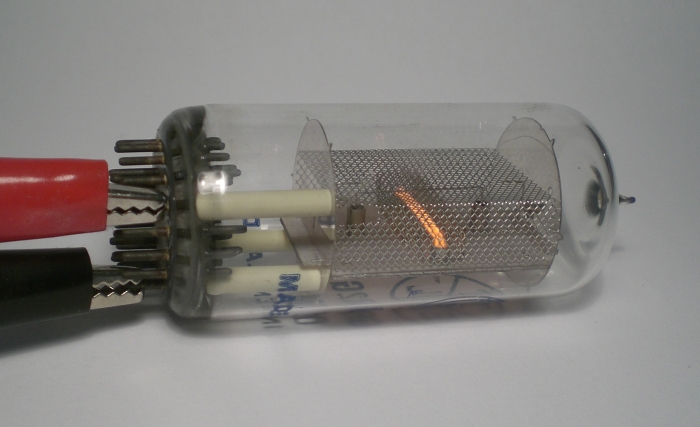

Hier ist das faszinierende Leuchtbild von der Seite aus zu sehen; auch der oben angesprochene innere Anodenkäfig ist zu erkennen:

Das Symbol '-' von der Seite

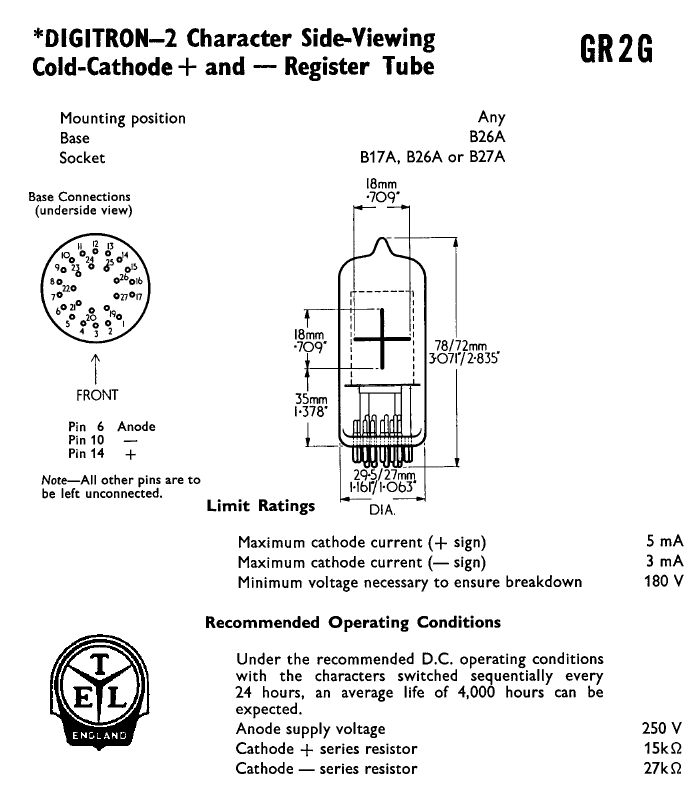

Hier ein paar Daten zur GR2G:

Daten zur GR2G

Das komplette Datenblatt gibt es hier zum Download: GR2G.pdf (94 KB).
