GR10A (CV5291)

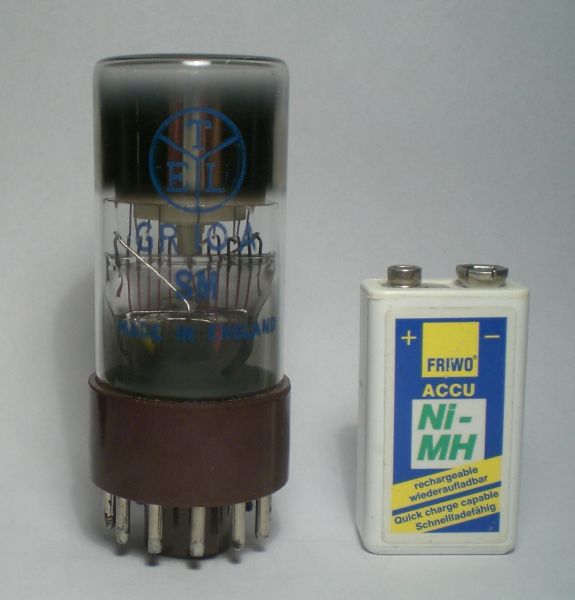

Die GR10A (Äquivalent: CV5291) vom englischen Hersteller ETL ist eine Registerröhre mit einer Gesamtanzeigehöhe von ca. 18mm, die Einzelpunkte haben einen Durchmesser von ca. 1mm:

Die GR10A im Größenvergleich

Entgegen der weitläufigen Meinung ist die GR10A kein Dekatron. Ein Dekatron ist nämlich eine selbstständig zählende Röhre, an die man direkt eine Frequenz etc. anschließen kann; die GR10A hingegen ist eine reine Anzeigeröhre mit der Besonderheit, dass die einzelnen Kathoden nicht in Ziffern-, sondern in Punktform vorne herausgeführt sind. Daher sieht die GR10A einem Dekatron zum Verwechseln ähnlich.

Hier ist die Originalverpackung der GR10A zu sehen:

Die Originalverpackung der GR10A

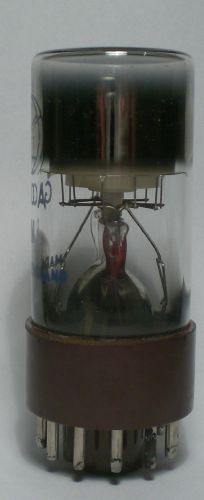

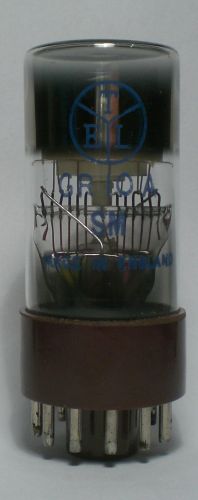

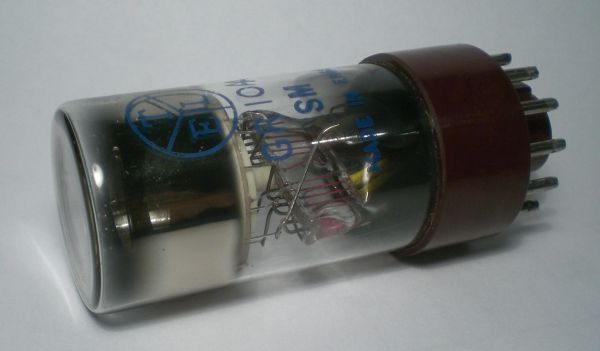

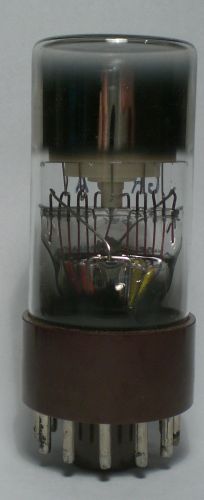

So sieht die GR10A im Ruhezustand aus:

Die GR10A im RuhezustandDie GR10A im RuhezustandDie GR10A im Ruhezustand

Die GR10A im Ruhezustand

Die Typennummer GR10A suggeriert auch, dass es sich um eine Anzeigeröhre handelt, da alle anderen Anzeigeröhren auch den GR Präfix aufweisen (z.B. GR10H, GR10K, GR10G, etc.). Zudem beginnen die Dekatrons von ETL mit dem Präfix GC oder GS.

Das Leuchtbild der GR10A ist - da es sich um eine Registerröhre mit Punkten als Kathoden handelt - nicht sonderlich aufregend:

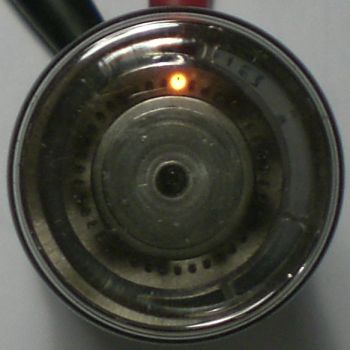

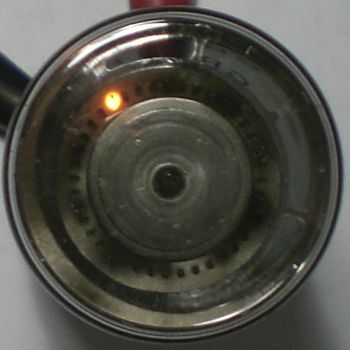

Die Position 1Die Position 2

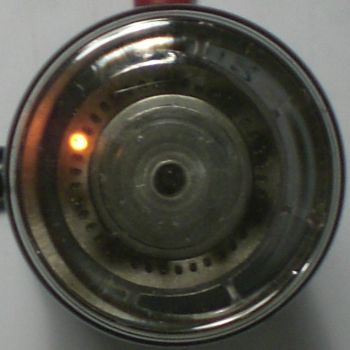

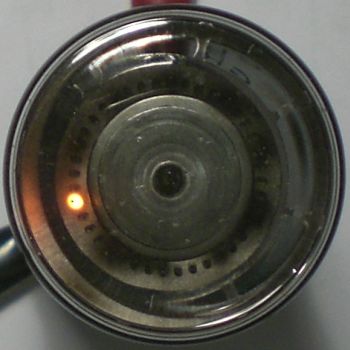

Die Position 3Die Position 4

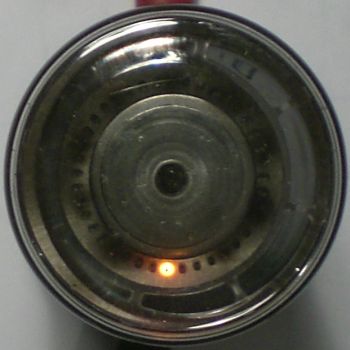

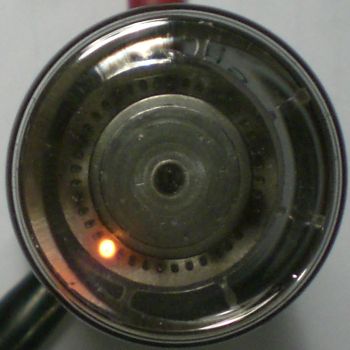

Die Position 5Die Position 6

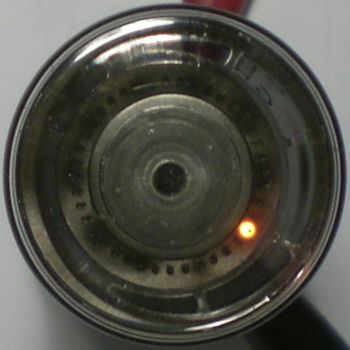

Die Position 7Die Position 8

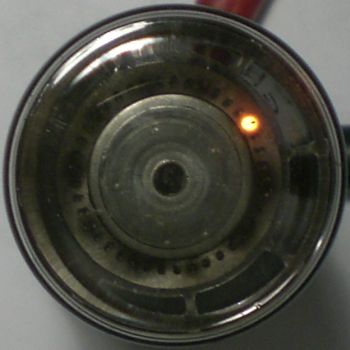

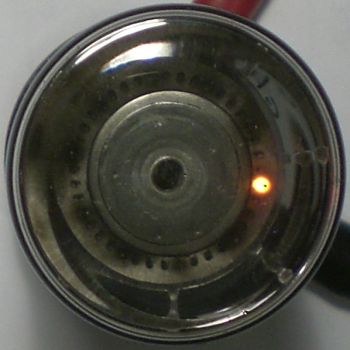

Die Position 9Die Position 10

Hier ist das Leuchtbild zu sehen, wenn alle Kathoden angesteuert sind:

Alle Kathoden an

Auch das ist bei einem Dekatron nicht möglich, da immer nur eine Kathode leuchten kann. Manchmal sieht es so aus, als ob bei Dekatrons 2-3 Kathoden gleichzeitig glimmen, aber das ist auf die Trägheit des Auges sowie die Verschlusszeiten der verwendeten Kameras zurückzuführen.

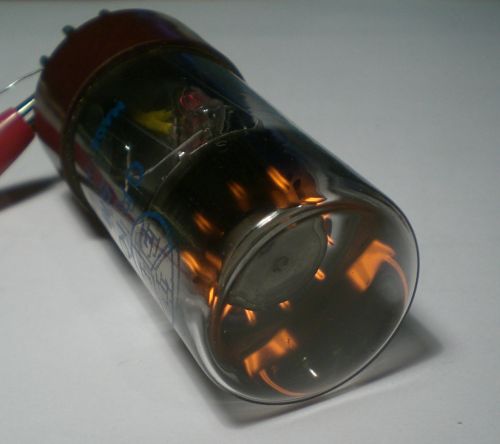

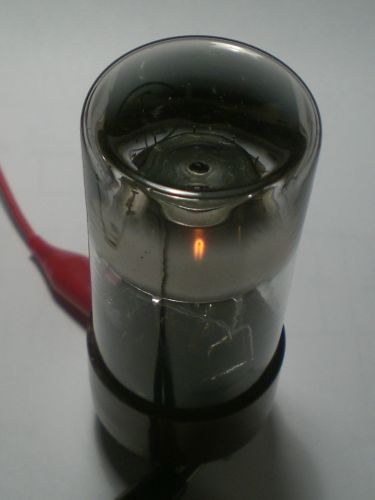

Hier ist das Leuchtbild von der Seite aus zu sehen:

Das Leuchtbild von der Seite

Das Leuchtbild von der Seite

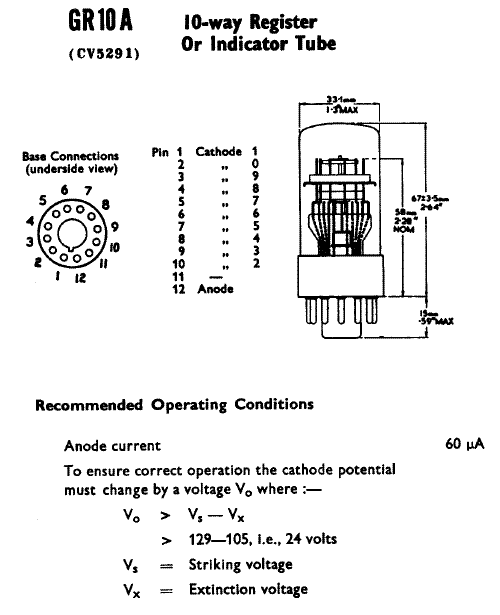

Hier sind ein paar Daten zur GR10A zu sehen:

Daten zur GR10A

Das komplette Datenblatt gint es hier zum Download: GR10A.pdf (61 KB).

Achtung! Aus der GR-Serie von ETL und Hivac existieren auch die GR10X. Besitzen Sie eine solche Röhre, oder kennen Sie eine Quelle? Schreiben Sie mir doch eine Email, wenn Sie mir helfen können, ich würde mich freuen! Achtung!

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Nixie Tube Collection » GR10A (CV5291)

GR10A (CV5291)

The GR10A (equivalent: CV5291) from the British manufacturer ETL is a register tube with an overall display height of app. 18mm, the single dots have a diameter of app. 1mm:

The GR10A in size comparison

As opposed to the common opinion, the GR10A is not a Dekatron tube. A Dekatron tube is a counting tube, that means the tube itself can count, so you can connect a frequency etc.; the GR10A is a mere display tube that has the special feature of point-shaped cathodes and not digit-shaped cathodes. That is why the GR10A looks like a Dekatron on the first glance.

Here you can see the original box of the GR10A:

The original box of the GR10A

This is how the GR10A looks like in state of rest:

The GR10A in state of restThe GR10A in state of restThe GR10A in state of rest

The GR10A in state of rest

The type number GR10A suggests that this tube is a display tube and not a counting tube, as all other display tubes have the GR prefix as well (e.g. GR10H, GR10K, GR10G, etc.). Futhermore, all Dekatron tubes from ETL have the prefix GC or GS.

The glowing digits of the GR10A do not look not too exciting:

The position 1The position 2

The position 3The position 4

The position 5The position 6

The position 7The position 8

The position 9The position 10

This is how the GR10A looks like with all cathodes lit:

All Cathodes lit

This is not possible with a Dekatron, because with Dekatrons only one cathode can glow at a time (that is how they work as a matter of fact). On some pictures it can look like two or more cathodes are lit simultaneously in a Dekatron, but that is only due to the shutter speed of the camera or the slowness of visual processing.

This is how the display looks from the side:

The display from the side

The display from the side

Here you can see soem dataa for the GR10A:

Data for the GR10A

The complete datasheet can be downloaded here: GR10A.pdf (61 KB).

Attention! In the ETL GR-series you can also find the GR10X. Do you possess these tubes, or do you happen to know a source for them? I would be glad if you dropped be an email. Attention!
