B-8091

Die B-8091 vom amerikanischen Hersteller Burroughs ist mit ihren 35mm Ziffernhöhe nach der B-7094 bzw. NL-7094 und der B-7011 die drittgrößte amerikanische Kopffüßler-Nixie:

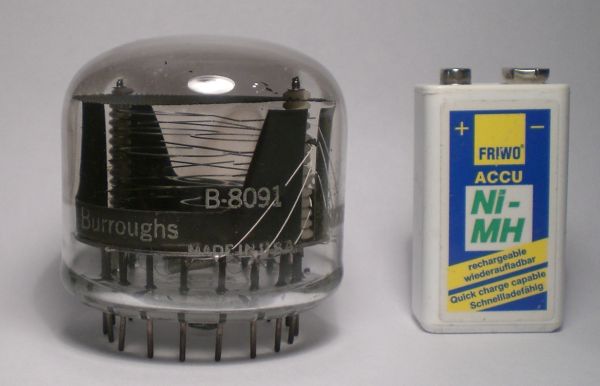

Die B-8091 im Größenvergleich

Es existieren mehrere Fabrikate: das Fabrikat Variante 1 (der neueste Typ), Variante 2 (dichtes Anodengitter, hier vorgestellt) und letztlich die Variante 3 (ebenfalls ältere Version, ohne Anodengitter).

Die Versionen 2 und 3 sind um ca. 10 Jahre älter als die Version 1, die als jüngste Version auch die größte Ähnlichkeit zur NL-8091 von National Electronics hat.

Die hier behandelte Version 2 ist der Übergangstyp zur anodengitterlosen Variante 3, da diese sich vom internen Aufbau sehr ähneln: so haben beide Versionen metallene Kreuze unterhalb der Drahtziffern, die als Zusatzanode fungieren (sieht man zum Beispiel auch bei der B-7031, einer weiteren anodengitterlosen Nixie).

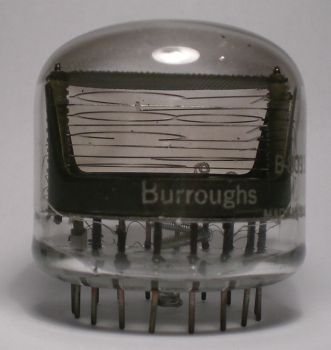

Hier ist die B-8091 im Ruhezustand zu sehen:

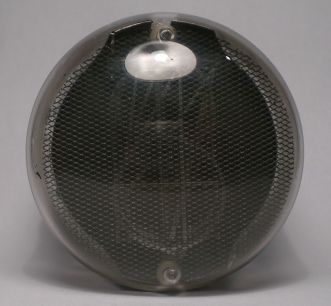

Die B-8091 im RuhezustandDie B-8091 im Ruhezustand

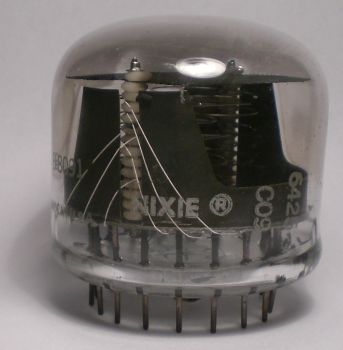

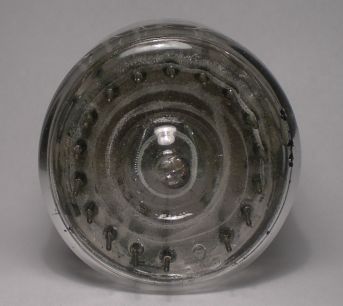

Die B-8091 im RuhezustandDie B-8091 im Ruhezustand

Hier ist das Leuchtbild der B-8091 zu sehen:

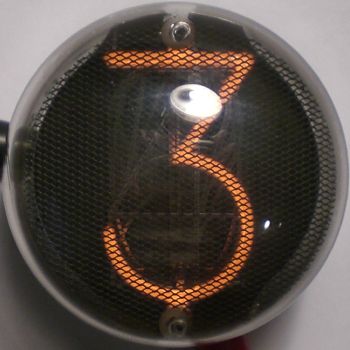

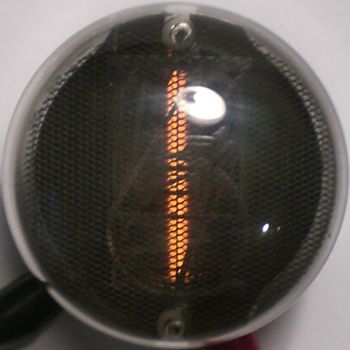

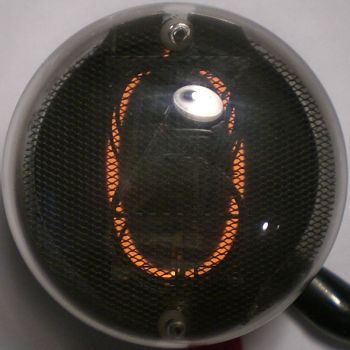

Die Ziffer 0Die Ziffer 1

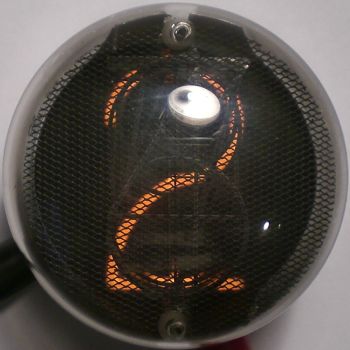

Die Ziffer 2Die Ziffer 3

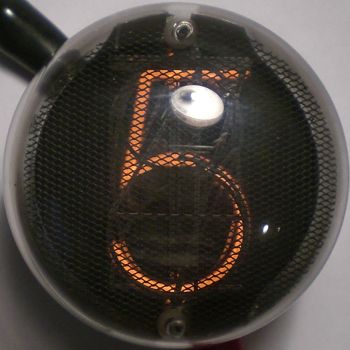

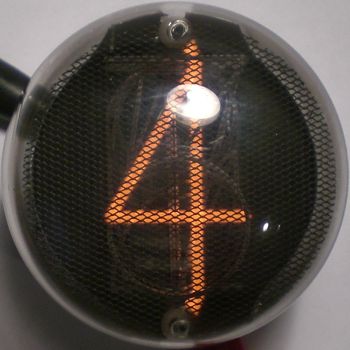

Die Ziffer 4Die Ziffer 5

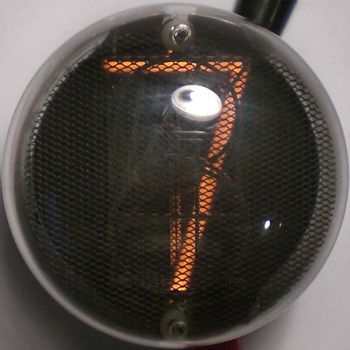

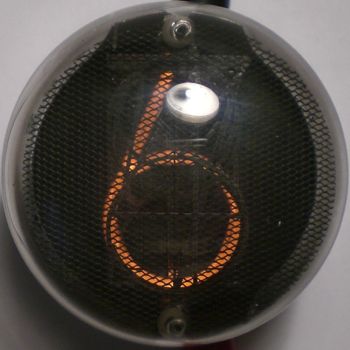

Die Ziffer 6Die Ziffer 7

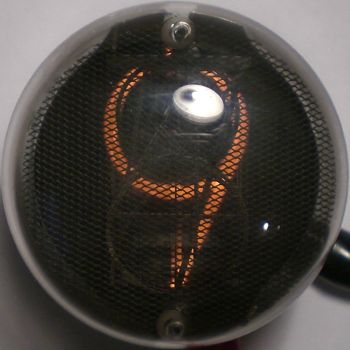

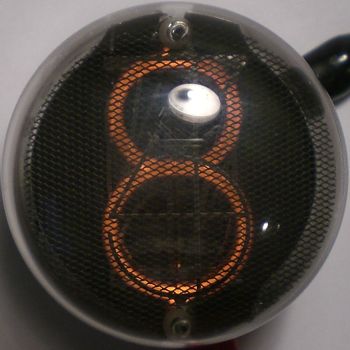

Die Ziffer 8Die Ziffer 9

Hier sieht man das Leuchtbild der B-8091 von der Seite aus:

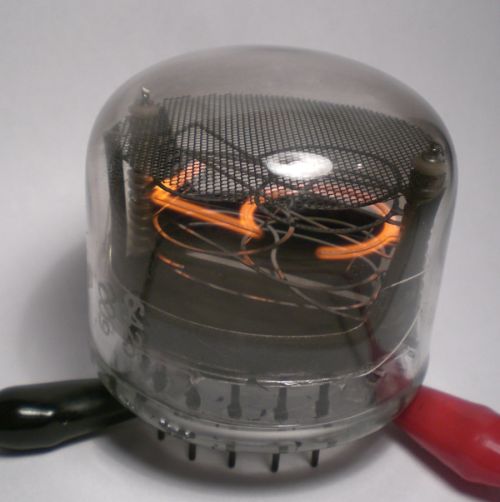

Die Ziffer 5 von der Seite

Die verschiedenen Exemplare der B-8091 sieht man hier noch einmal im Überblick:

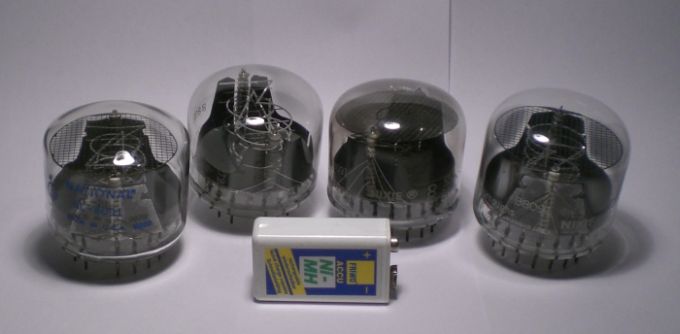

Alle B-8091 und die NL-8091

Reihenfolge: NL-8091 - B-8091 Variante 3 - B-8091 Variante 2 (hier behandelt) - B-8091 Variante 1

Hier sind die Daten zur B-8091 zu sehen:

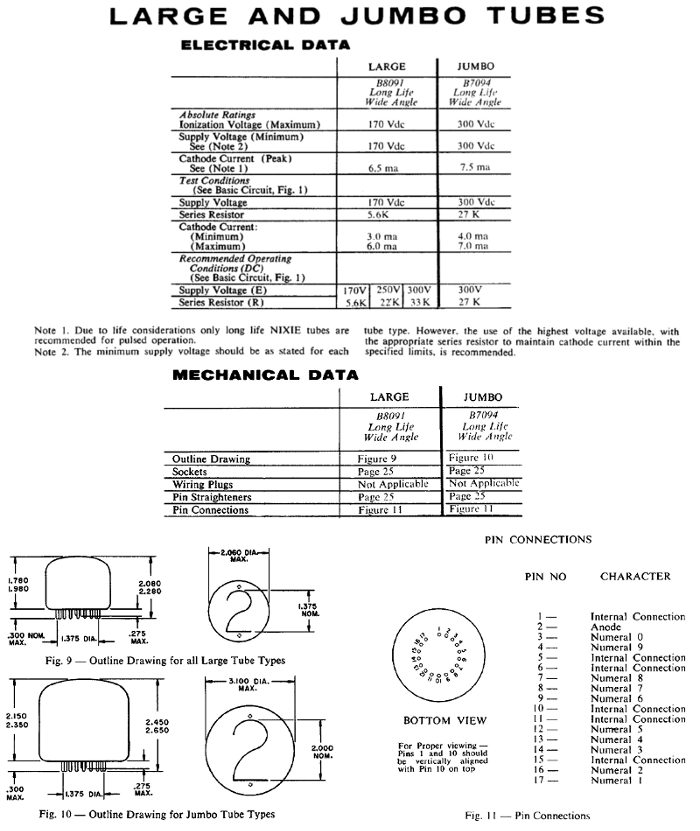

Daten zur B-8091

Achtung! Die größte amerikanische Röhre ist die B-7011. Besitzen Sie eine solche Röhre, oder kennen Sie eine Quelle? Schreiben Sie mir doch eine Email, wenn Sie mir helfen können, ich würde mich freuen! Achtung!
