B-4031

Die B-4031 vom amerikanischen Hersteller Burroughs (kompatibel mit NL-4031 von National Electronics) ist eine winzige Sonderzeichen-Nixie:

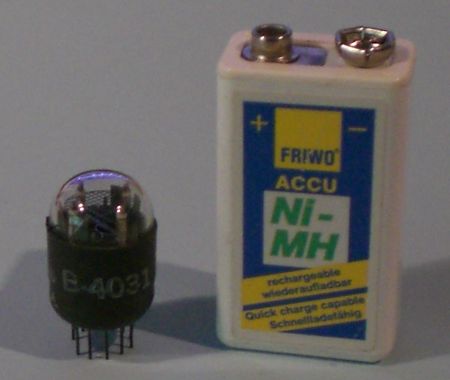

Die B-4031 im Größenvergleich

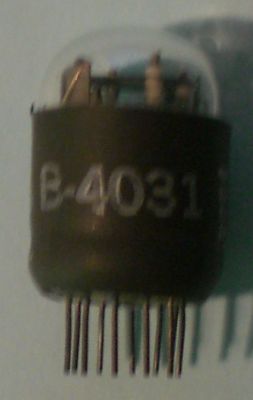

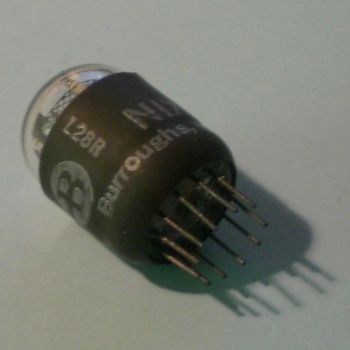

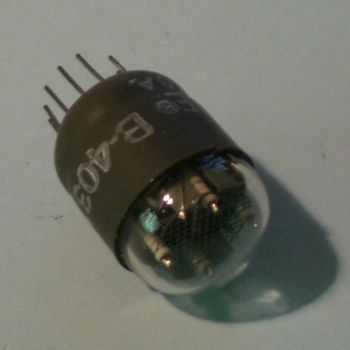

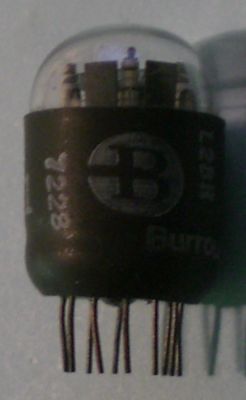

Hier ist die B-4031 im Ruhezustand zu sehen:

Die B-4031 im RuhezustandDie B-4031 im Ruhezustand

Die B-4031 im RuhezustandDie B-4031 im Ruhezustand

Hier ist das Leuchtbild der B-4031 zu sehen:

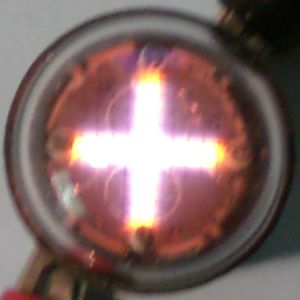

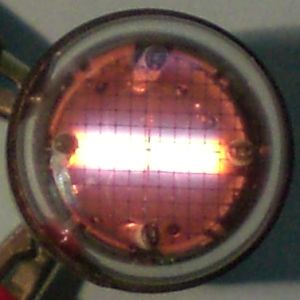

Das Symbol '-'Das Symbol '+'

Das Symbol '8' ist nicht ansteuerbar, das liegt daran, dass dieses Symbol als Hilfsanode fungiert.

Leider besitze ich kein Datenblatt zur B-4031. Sollte jemand im Besitz dieses Datenblattes sein, würde ich mich über eine Mail diesbezüglich sehr freuen.
