GL-LS-4

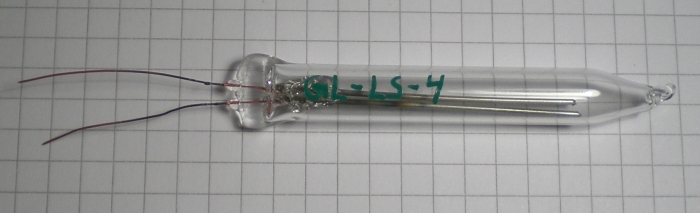

Das Glow Lamp Lab Sample 4, oder kurz GL-LS-4, ist eine verbesserte Glimmlampenkonstruktion, die sich neben 9mm-Kalknatron-Glasrohr und Dumet-Draht durch Elektroden aus 1mm Edelstahldraht auszeichnet. Sie arbeitet mit einer Luft-Füllung bei 15mbar:

GL-LS-4

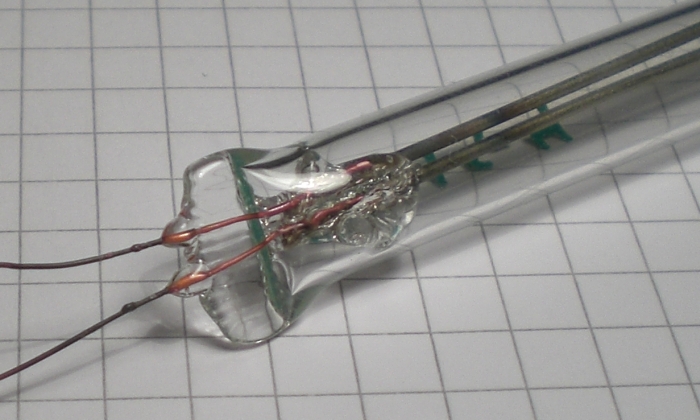

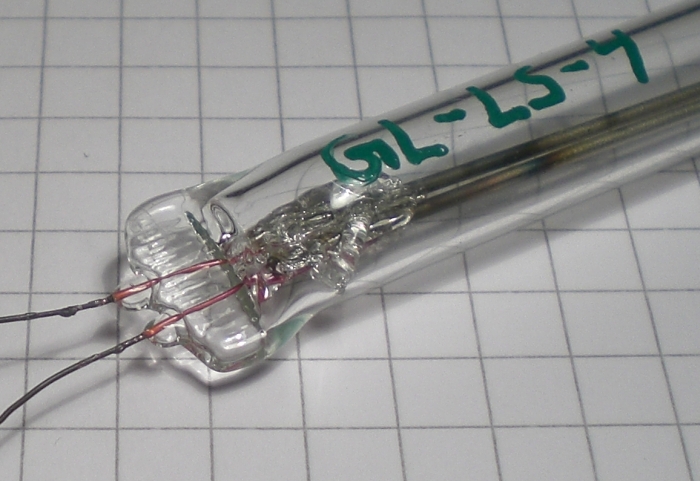

Damit sich die Edelstahl-Elektroden nicht berühren werden sie mit einigen Tropfen Glas auf Abstand gehalten:

Die Befestigung der Elektroden in der GL-LS-4

Die Befestigung der Elektroden in der GL-LS-4

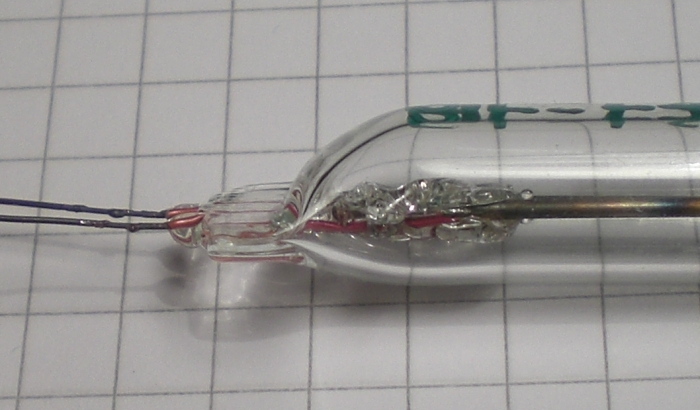

Das Glas scheint zudem den Dumet-Drähten nach außen zu folgen; das ist kein Zufall, die Dumet-Drähte wurden vorher verglast, was den Quetschsiegelprozess deutlich vereinfacht. Es wäre besser gewesen, auch die Edelstahldrähte bis zu einer gewissen Höhe mit einer solchen Beschichtung zu versehen, da die Glastropfen dann deutlich besser gehalten hätten. So sieht es doch etwas brachial aus:

Die Befestigung der Elektroden in der GL-LS-4

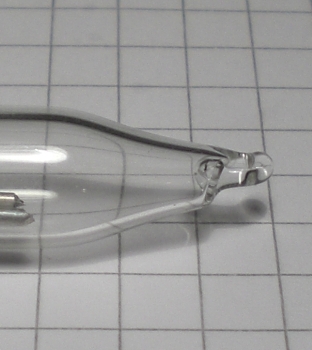

Das Vakuumsiegel ist immer noch nicht perfekt gelungen:

Das Vakuumsiegel der GL-LS-4Das Vakuumsiegel der GL-LS-4

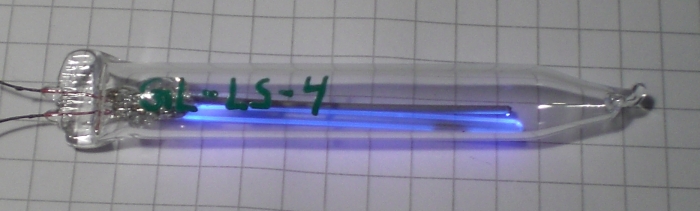

Doch auch diese Glimmlampe arbeitet (mit einer hohen Zündspannung von 550V) erfolgreich:

Die glimmende GL-LS-4

Die glimmende GL-LS-4

Die glimmende GL-LS-4

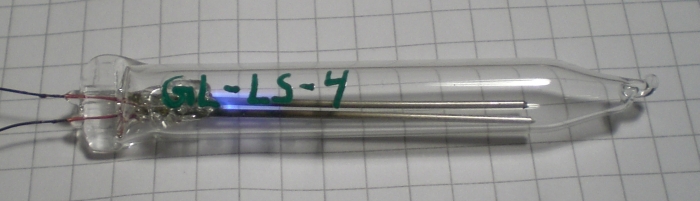

Gerade im letzten Bild ist der fließende Strom sehr groß: er beträgt ganze 50mA. Die GL-LS-4 erhitzte sich dabei auf etwa 100°C; kurz danach schlug sogar ein Funke über. Seitdem leuchtet die GL-LS-4 nur noch an der Stelle, wo der Überschlag stattfand:

Die glimmende GL-LS-4

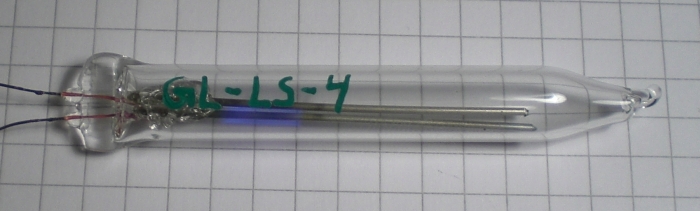

Trotz geglätteter Gleichspannung tritt teilweise ein Wandern des Glimmens auf:

Die glimmende GL-LS-4

Doch dieses Phänomen scheint nur vorrübergehender Natur gewesen zu sein; nach mehrwöchiger Pause ist das Glimmen nun wieder gleichmäßig verteilt:

Die glimmende GL-LS-4

Im Dunkeln sieht dies besonders eindrucksvoll aus:

Die glimmende GL-LS-4

Vergleicht mensch die Farbe der GL-LS-4 mit der der GL-LS-3 oder auch GL-LS-6, so erscheint sie deutlich blauer und weniger violett. Vielleicht ist dies dem größeren Durchmesser der Edelstahlkathoden der GL-LS-4 geschuldet, oder deren reflektierender Oberfläche. Alternativ besteht auch die Möglichkeit, dass beim Betrieb eingeschlossene Gase aus den Edelstahldrähten austreten, die die Atmosphärenzusammensetzung ändern und somit auch einen Einfluss auf die Leuchtfarbe haben.

Nach oben

show print layout Die deutsche Version der Seite besuchen

www.jb-electronics.de » Electronics » Nixie Tubes » Handcrafted Nixie tubes » GL-LS-4

GL-LS-4

The Glow Lamp Lab Sample 4, or in short GL-LS-4, is an improved glow lamp construction that employs stainless steel electrodes next to the standard 9mm soda lime tubing and Dumet wire. The filling is air at 15mbar:

GL-LS-4

To prevent the stainless steel electrodes from touching, they have been fixed at a distance of about 1mm using some drops of glass:

The electrode fixture inside the GL-LS-4

The electrode fixture inside the GL-LS-4

The glass seems to follow the Dumet wires at the base. That is not a coincidence: prior to the pinch, the Dumet wires were given a glass envelope, thus greatly simplifying the overall sealing process. It would have been a good idea to have the glass envelope reach up to the stainless steel electrodes for a few mm so that the glas drops would have adhered much better to the stainless steel electrodes. It does not look very elegant the way it has been done instead:

The electrode fixture inside the GL-LS-4

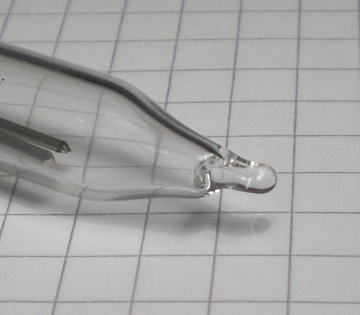

The vacuum seal is still not perfect:

The vacuum seal of the GL-LS-4The vacuum seal of the GL-LS-4

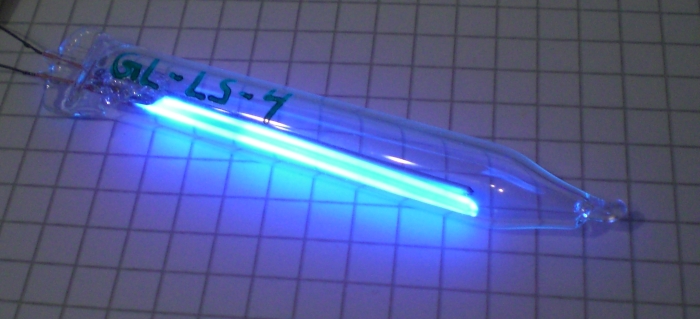

However, this glow lamp was a success with an ignition at the relatively high voltage of 550V:

The glowing GL-LS-4

The glowing GL-LS-4

The glowing GL-LS-4

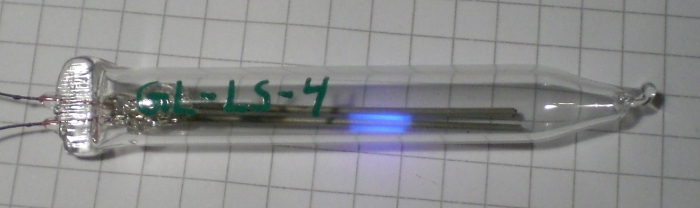

In the lower image, the current is very high: 50mA. The GL-LS-4 heated up to approximately 100°C; shortly after that, a small spark leapt over. After that, the GL-LS-4 will glow only where the spark occured:

The glowing GL-LS-4

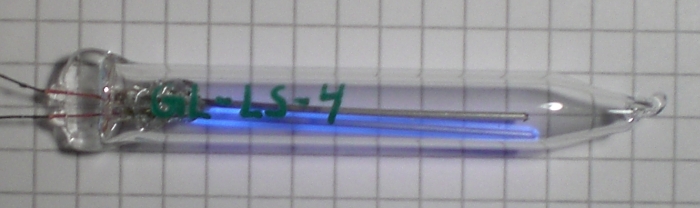

Even though the tube is driven by smoothed DC, the glow sometimes wanders for a short period of time:

The glowing GL-LS-4

However, this phenomenon is possibly transient; after a pause of several weeks, the glow is spreading evenly again:

The glowing GL-LS-4

This looks most impressive in the dark:

The glowing GL-LS-4

Comparing the color of the GL-LS-4 with the ones of the GL-LS-3 or GL-LS-6 reveals that she is much more blue and less violet. This might be due to the larger diameter of the stainless steel electrodes of the GL-LS-4, or their more reflecting surfaces. Another reason might be the outgassing of the stainless steel electrodes when heated up, changing the composition of the glow lamp's atmosphere and thus allowing for a change in color.
